All-in-one IP55 Rated A/C Cooled Dual Compartment Outdoor Battery Cabinet for up to 5 x 4RU size 19" Modules, Inverter , MPPT & Circuit breakers

EBC25H-ODAIR Enepower All-in-one IP55 Rated A/C Cooled Dual Compartment Outdoor Battery Cabinet suitable for up to 25.6kWh of battery storage & power conversion equipment.

This innovative design features separate compartments to house the battery modules, and power conversion equipment, enabling easy access and simplified installations.

The Battery compartment can house up to 5 x 4RU sized modules (6 x 3RU) and is cooled by a DC48V 500W Air Conditioning Unit.
The Power Conversion Equipment (PCE) compartment features a mounting plate, cable tray to conveniently house Inverters, Solar Controllers plus copper busbars for battery cable connections

Battery Storage Capacity:
4RU Modules x 5
3RU Modules x 6

Cabinet Features:
Heavy Duty Galvanised steel construction - Colour RAL7035
10mm thick NBR insulation
IP55 ingress rating

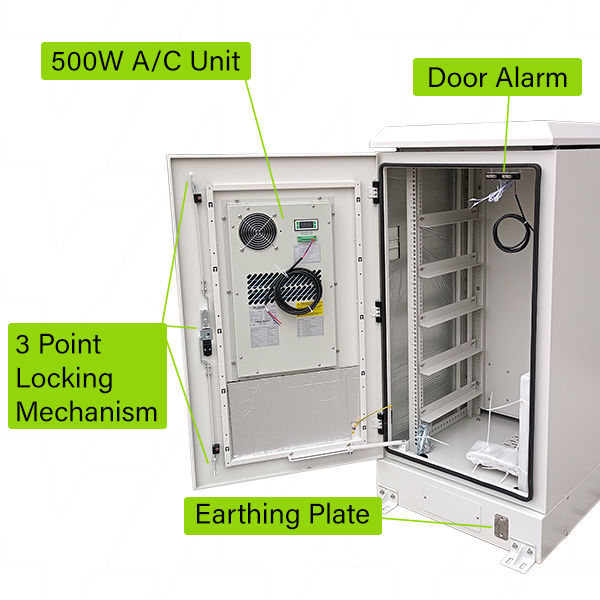

Multiple gasketed door access points via removable metal doors with three-point keyed-alike handle locks with staple for a padlock
Front/Rear Door stays @ 120°
Side Door stays @ 100°
4 x Door Alarms
Battery Compartment x 1 door
PCE Compartment x 1 door + 2 side access doors
DC 48V 500W Air Conditioning Unit - Battery Compartment
Twin 48VDC Fans with Thermostat - PCE Compartment
6 x adjustable height L Brackets/Rails for module installation (5 pre-installed)
2 x 330mm x 60mm x 8mm Copper Busbars with 8mm bolts for battery connection
Acrylic Busbar Cover , Busbar insulators & stainless steel bolts
Handy DC 48V internal LED Lights
Document pocket
Removable filters
4 x Floor mounting brackets
4 x Lifting Hooks to assist with cabinet placement - see Lifting Guidance Tech Note

Warranty: The EBC25H-ODAIR comes with a standard warranty of Three (3) years on the cabinet, One (1) year for the Air Conditioning Unit

Compatible Battery Modules - Suits most standard 19" rack mount batteries including:
4RU size such as Pylontech US5000, Drypower ZRLVESS5KR-V1
3RU size such as Pylontech US3000, ZYC Simpo 5.12kWh, BYD LV Flex, Discover AES
2RU Size such as Pylontech US2000, UP2500*, PowerPlus LiFe2433P, LiFe4833P, LiFe4822P, LiFe12033P

*Fans and AC require a Victron Orion TR 24/48 DC-DC converter when using 24V Battery systems

Selling Unit
EACH
Model No
EBC25H-ODAIR
Inventory Code
63001-100
Brand
Enepower
Description
All-in-one IP55 Rated A/C Cooled Dual Compartment Outdoor Battery Cabinet for up to 5 x 4RU size 19" Modules, Inverter , MPPT & Circuit breakers
Width
650mm
Height
1315mm
Length / Breadth / Depth
1151mm
Weight
203kg
