2 Bay All-in-one IP55 Rated A/C Cooled Outdoor Battery Cabinet for up to 8 x 4RU size 19" Modules, Inverter , MPPT & Circuit breakers

EBC40H-ODAIR Enepower 2 Bay All-in-one IP55 Rated A/C Cooled Outdoor Battery Cabinet suitable for up to 40.92kWh of battery storage & power conversion equipment.

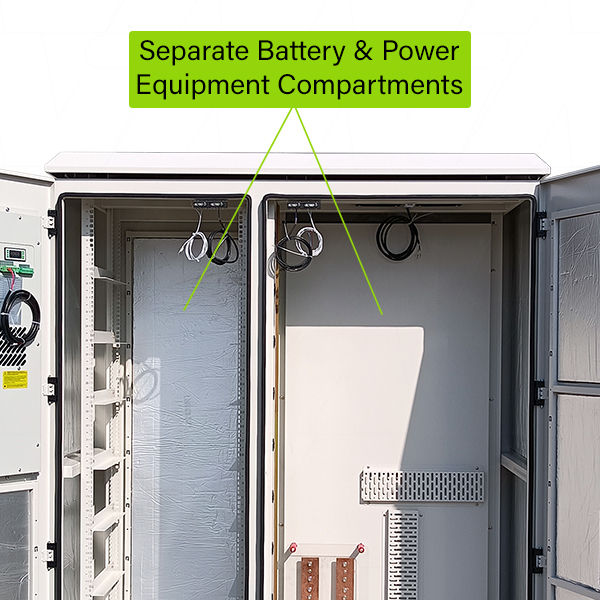

This innovative design features separate compartments to house the battery modules, and power conversion equipment, enabling easy access and simplified installations.
The Battery compartment can house up to 8 x 4RU sized modules (10 x 3RU) and is cooled by a DC48V 1500W Air Conditioning Unit.
The Power Conversion Equipment (PCE) compartment features a Mounting plate, DIN Rail and 3 cable trays to conveniently house Inverters, Solar Controllers and Breakers plus copper busbars for battery cable connections

Battery Storage Capacity:
4RU Modules x 8
3RU Modules x 10

Cabinet Features:
Heavy Duty Galvanised steel construction - Colour RAL7035
10mm thick NBR insulation on doors, sides and roof
IP55 ingress rating
Dual gasketed door access points via removable metal doors with 3 point keyed-alike handle locks with staple for a padlock
Door stays @ 120°
4 x Door Alarms
Battery compartment: LHS Door
Power Conversion Equipment compartment: RHS Door
Removable rear panels for easy access
48VDC 1500W Air Conditioning Unit - Battery Compartment
Twin 48VDC Fans with Thermostat - PCE Compartment
10 x adjustable height L Brackets/Rails for module installation (8 pre-installed)
2 x 450mmx 60mm x 8mm copper busbars with pre-drilled holes for battery cable connection
Acrylic busbar cover, busbar insulators and stainless steel bolts
Handy DC 48V internal LED Lights
Document pocket
Removable filters
4 x Floor mounting brackets
4 x Lifting Hooks to assist with cabinet placement - see Lifting Guidance Tech Note

Warranty: The EBC40H-ODAIR comes with a standard warranty of Three (3) years on the cabinet, One (1) year for the Air Conditioning Unit

Compatible Battery Modules - Suits most standard 19" rack mount batteries including:
4RU size such as Pylontech US5000, Drypower ZRLVESS5KR-V1
3RU size such as Pylontech US3000, ZYC Simpo 5.12kWh, BYD LV Flex, Discover AES
2RU Size such as Pylontech US2000, UP2500*, PowerPlus LiFe2433P, LiFe4833P, LiFe4822P, LiFe12033P

*Fans and AC require a Victron Orion TR 24/48 DC-DC converter when using 24V Battery systems

Product Details
Selling Unit
EACH
Model No
EBC40H-ODAIR
Inventory Code
63001-102
Brand
Enepower
Description
2 Bay All-in-one IP55 Rated A/C Cooled Outdoor Battery Cabinet for up to 8 x 4RU size 19" Modules, Inverter , MPPT & Circuit breakers
Width
1500mm
Height
2000mm
Length / Breadth / Depth
810mm
Weight
398kg
